Experiment Tracking with MLflow

MLflow is an open-source platform for tracking and managing machine learning experiments. It can record:

Parameters used during training
Metrics produced during training
Artifacts such as models, plots, and files
Runs representing individual training experiments
Experiments grouping related runs

MLflow workflow

Train Model
     ↓
MLflow Experiment
     ↓
Start Run
     ↓
Log Parameters
     ↓
Train Model
     ↓
Log Metrics
     ↓
Log Artifacts
     ↓
View Results in MLflow UI

1. Install MLflow

pip install mlflow

For the example below, also install scikit-learn:

pip install scikit-learn

2. Important MLflow Concepts

Experiment

An experiment groups related machine learning runs. Example:

Experiment: House Price Prediction
│
├── Run 1
├── Run 2
├── Run 3
└── Run 4

Create or select an experiment using:

mlflow.set_experiment("Linear Regression Experiment")

Run

A run represents one execution of a machine learning experiment. For example, changing the learning rate and training the model again creates another run.

Run 1 → learning_rate = 0.01
Run 2 → learning_rate = 0.001
Run 3 → learning_rate = 0.0001

3. Logging Parameters

Parameters are values configured before or during training. Examples:

learning_rate
epochs
batch_size
max_depth
n_estimators

Log a parameter:

mlflow.log_param("n_estimators", 100)

Multiple parameters:

mlflow.log_params({
    "n_estimators": 100,
    "max_depth": 5
})

4. Logging Metrics

Metrics measure model performance. Examples:

accuracy
precision
recall
f1_score
mae
mse
rmse
r2_score

Example:

mlflow.log_metric("accuracy", accuracy)

Multiple metrics:

mlflow.log_metrics({
    "mae": mae,
    "r2": r2
})

5. Logging Artifacts

Artifacts are files generated during an experiment. Examples:

Trained model
CSV files
Images
Confusion matrix
Training plots
Text reports

Example:

mlflow.log_artifact("result.txt")

6. Starting an MLflow Run

Use:

with mlflow.start_run():
    ...

Everything logged inside this block belongs to that run. Example:

with mlflow.start_run():
    mlflow.log_param("model", "LinearRegression")
    mlflow.log_metric("r2", 0.92)

7. Simple Training Example

The following example trains a Linear Regression model and tracks the experiment.

`mlflow_code.py`

import mlflow
import mlflow.sklearn

from sklearn.datasets import load_diabetes
from sklearn.linear_model import LinearRegression
from sklearn.metrics import mean_absolute_error, mean_squared_error, r2_score
from sklearn.model_selection import train_test_split


# 1. Set MLflow tracking location
mlflow.set_tracking_uri("sqlite:///mlflow.db")

# 1.1. Creating/selecting an experiment
mlflow.set_experiment("Linear Regression Experiment")


# 2. Load the dataset
data = load_diabetes()

X = data.data
y = data.target


# 3. Split the dataset
X_train, X_test, y_train, y_test = train_test_split(
    X,
    y,
    test_size=0.2,
    random_state=42,
)


# 4. Start an MLflow run
with mlflow.start_run():

    # 5. Create the model
    model = LinearRegression()

    # 6. Log parameters
    mlflow.log_param("model", "LinearRegression")
    mlflow.log_param("test_size", 0.2)
    mlflow.log_param("random_state", 42)

    # 7. Train the model
    model.fit(X_train, y_train)

    # 8. Generate predictions
    predictions = model.predict(X_test)

    # 9. Calculate metrics
    mae = mean_absolute_error(y_test, predictions)
    mse = mean_squared_error(y_test, predictions)
    rmse = mse ** 0.5
    r2 = r2_score(y_test, predictions)

    # 10. Log metrics
    mlflow.log_metric("mae", mae)
    mlflow.log_metric("mse", mse)
    mlflow.log_metric("rmse", rmse)
    mlflow.log_metric("r2", r2)

    # 11. Log the trained model
    mlflow.sklearn.log_model(
        model,
        name="linear_regression_model",
    )

    # 12. Print results
    print("Model trained successfully")
    print(f"MAE: {mae:.4f}")
    print(f"MSE: {mse:.4f}")
    print(f"RMSE: {rmse:.4f}")
    print(f"R2 Score: {r2:.4f}")

Install dependencies

pip install mlflow scikit-learn

Run the program

python mlflow_code.py

Start MLflow UI

After the training run:

mlflow ui

Then open the local MLflow address shown in the terminal.

Output:

Model trained successfully
MAE: 42.7941
MSE: 2900.1936
RMSE: 53.8534
R2 Score: 0.4526

The run will contain:

Linear Regression Experiment
│
└── Run
    ├── Parameters
    │   ├── model
    │   ├── test_size
    │   └── random_state
    │
    ├── Metrics
    │   ├── MAE
    │   ├── MSE
    │   ├── RMSE
    │   └── R2
    │
    └── Artifacts
        └── linear_regression_model

8. Step-by-Step Explanation

Step 1: Import MLflow

import mlflow

Provides MLflow functionality for experiment tracking.

Step 2: Load Dataset

data = load_diabetes()

Loads the built-in Diabetes regression dataset from scikit-learn.

Step 3: Separate Features and Target

X = data.data
y = data.target

X contains the input features. y contains the target values.

Step 4: Split the Dataset

X_train, X_test, y_train, y_test = train_test_split(
    X,
    y,
    test_size=0.2,
    random_state=42,
)

80% of the data is used for training and 20% for testing.

Step 5: Create an Experiment

mlflow.set_experiment("Linear Regression Experiment")

Creates or selects an MLflow experiment.

Step 6: Start a Run

with mlflow.start_run():

Starts a new MLflow run.

Step 7: Create the Model

model = LinearRegression()

Creates a Linear Regression model.

Step 8: Log Parameters

mlflow.log_param("model", "LinearRegression")
mlflow.log_param("test_size", 0.2)
mlflow.log_param("random_state", 42)

Stores the configuration used for the experiment.

Step 9: Train the Model

model.fit(X_train, y_train)

Trains the model using the training data.

Step 10: Generate Predictions

predictions = model.predict(X_test)

Generates predictions for the test dataset.

Step 11: Calculate Metrics

mae = mean_absolute_error(y_test, predictions)
mse = mean_squared_error(y_test, predictions)
r2 = r2_score(y_test, predictions)

Calculates model performance.

Step 12: Log Metrics

mlflow.log_metric("mae", mae)
mlflow.log_metric("mse", mse)
mlflow.log_metric("r2", r2)

Stores the performance metrics in MLflow.

9. Run the Example

python mlflow_demo.py

Example output:

Model trained successfully
MAE: 42.1234
MSE: 2900.1234
R2 Score: 0.4521

10. Start MLflow UI

Run:

mlflow ui

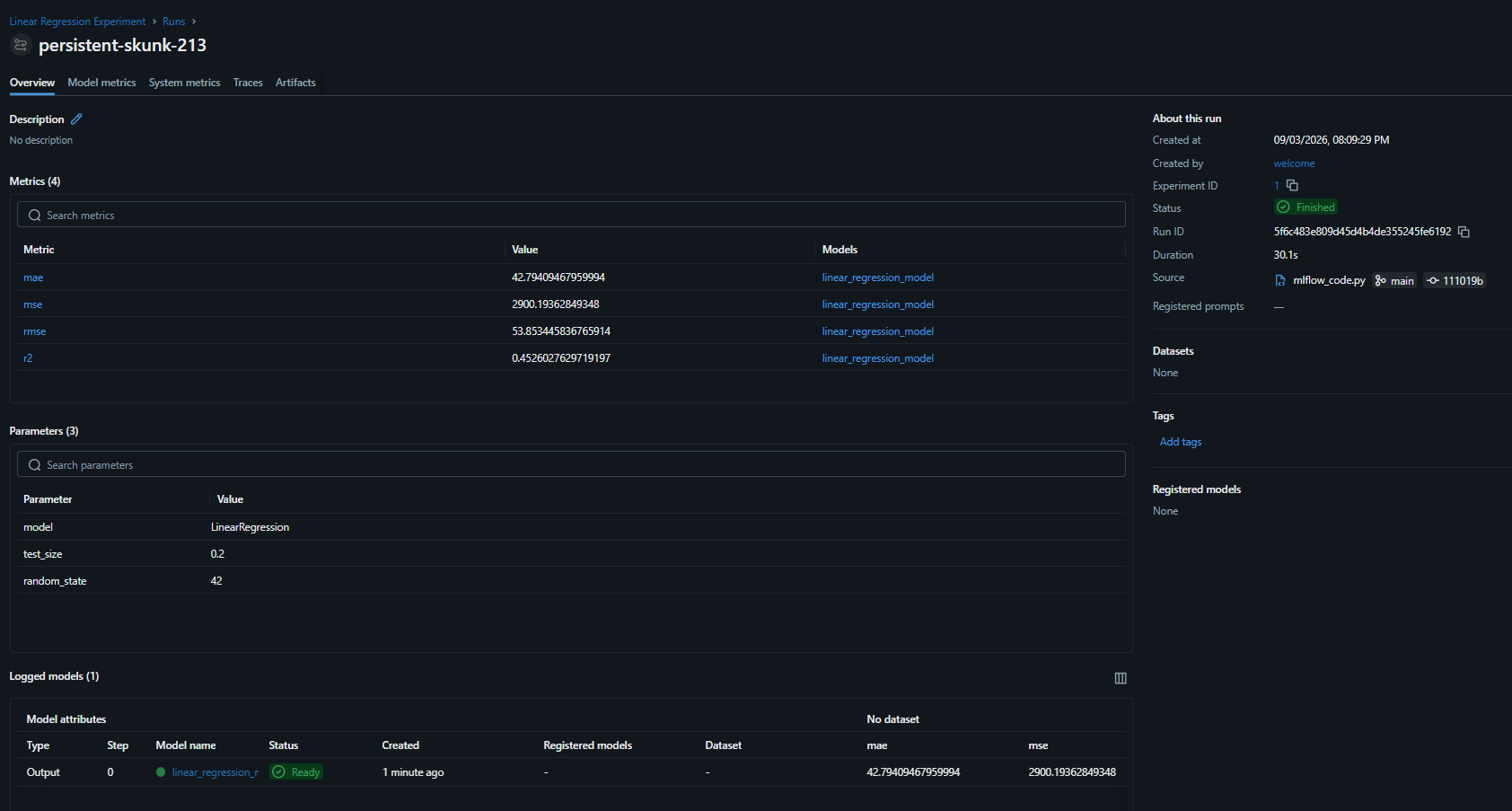

MLflow starts a local tracking server. The terminal will provide the local address. Open the displayed address in a browser. The MLflow UI provides information such as:

Experiments
    ↓
Runs
    ↓
Parameters
Metrics
Artifacts

11. Comparing Runs

Suppose three experiments are performed:

Run 1
model = LinearRegression
r2 = 0.45

Run 2
model = Ridge
r2 = 0.51

Run 3
model = RandomForest
r2 = 0.68

MLflow makes it possible to compare these runs. This helps determine which configuration produced better results.

12. Parameters vs Metrics vs Artifacts

Type	Meaning	Examples
Parameter	Training configuration	`learning_rate`, `max_depth`
Metric	Model performance	`accuracy`, `RMSE`, `R²`
Artifact	Generated file	Model, plot, CSV
Run	One experiment execution	Run 1, Run 2
Experiment	Collection of related runs	Image Classification

13. Important MLflow Components

MLflow commonly includes four major areas:

MLflow Tracking

Tracks:

Parameters
Metrics
Artifacts
Models
Runs

MLflow Projects

Packages machine learning code in a reproducible format.

MLflow Models

Provides a standard format for saving and serving models.

MLflow Model Registry

Manages model versions and lifecycle stages. Example:

Model
 ↓
Version 1
 ↓
Version 2
 ↓
Version 3

14. MLflow Model Registry

The Model Registry can be used to manage models through their lifecycle. Typical workflow:

Training
   ↓
Experiment
   ↓
Best Run
   ↓
Register Model
   ↓
Model Version
   ↓
Production

Important concepts include:

Model versions
Model aliases
Model metadata
Model lifecycle management

15. Why Experiment Tracking Is Important

Without experiment tracking:

Model A → ?
Model B → ?
Model C → ?

It becomes difficult to remember which configuration produced a particular result. With MLflow:

Run 1
├── Parameters
├── Metrics
└── Artifacts

Run 2
├── Parameters
├── Metrics
└── Artifacts

Run 3
├── Parameters
├── Metrics
└── Artifacts

This makes experiments reproducible and easier to compare.

16. Key Commands

Install:

pip install mlflow

Run training:

python mlflow_demo.py

Start UI:

mlflow ui

Start a run:

with mlflow.start_run():
    ...

Log parameter:

mlflow.log_param("parameter", value)

Log metric:

mlflow.log_metric("metric", value)

Log artifact:

mlflow.log_artifact("file.txt")

Set experiment:

mlflow.set_experiment("Experiment Name")

17. Complete Experiment Tracking Flow

Dataset
   ↓
Model Configuration
   ↓
MLflow Experiment
   ↓
Start Run
   ↓
Log Parameters
   ↓
Train Model
   ↓
Calculate Metrics
   ↓
Log Metrics
   ↓
Save Files / Model
   ↓
Log Artifacts
   ↓
MLflow UI
   ↓
Compare Runs
   ↓
Select Best Model
